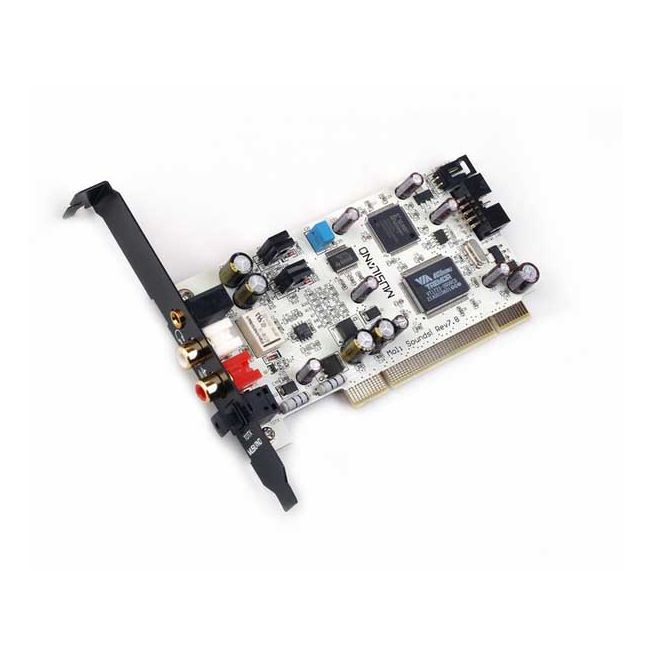

Musiland Moli äänikortti 24-bit / 192kHz PCI Express ‐väylään

Erinomaista hintalaatua tällä äänikortilla, peräti 24-bit / 192kHz resoluutiolla.

Ominaisuuksia englanniksi:

Analog output
Dynamic range (D/A):113Db
SNR (D/A):113dB
THD(D/A):0.001%
Frequency response (20Hz~20KHz):+-0.1dB
Output level:3V rms
Output impedance:10KΩ
Earphone RMS:100mW/RL=100Ω;200mW/RL=32Ω

Digital output
Dynamic range:140dB
SNR(A weighting):140dB
THD:0.0001%
Frequency response (20Hz~20KHz):+-0dB

Interface
Computer Interface :PCI/32Bit
A pair of RCA line output interface (stereo)
One 3.5mm earphone output interface
One square-mouth optical fiber output interface
One 2Pin S/PDIF output
One 10Pin S/PDIF digital expand interface

Major characteristic
24Bit/192KHz analog output
Support ASIO
Asynchronous buffer support exact digital audio timing sequence,lowest digital jitter
Output sample rate manual settings
Line / earphone output can switching over in the control panel
Drivers support Windows XP/2003/VISTA/7 system 32&64Bit
