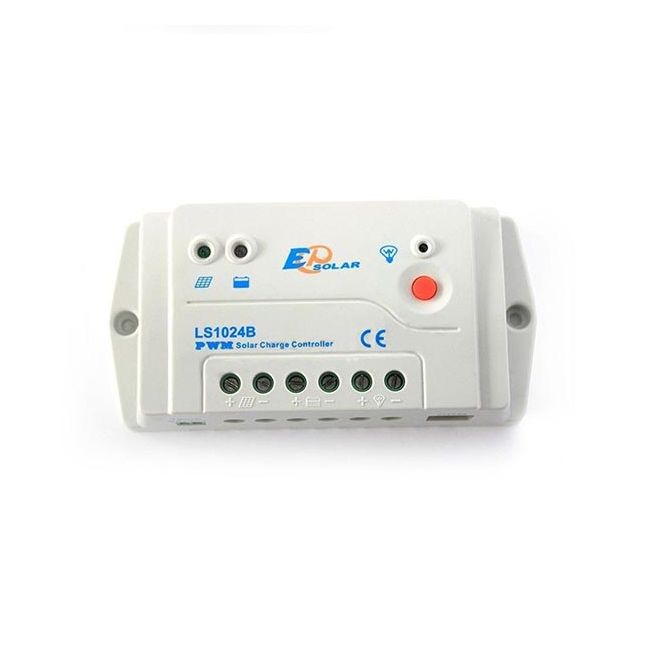

LS1024B 10A lataussäädin

LS1024B 10A lataussäädin

LS1024B 10A lataussäädin

29,95 €
Saatavuus: Varastossa!
SKU
000912365468546

Soveltuu 100W:n aurinkopaneelille, tai kahdelle 50W:n aurinkopaneelille. Automaattinen akkujännitteen valinta (12/24V). Lataussäätimeen voidaan liittää myös MT50-lisänäyttö. Akkutyypin valinta.



  • Nominal System Voltage 12 / 24VDC
  • Rated Battery Current 10A
  • Maximum PV input voltage 50V
  • Grounding Common positive
  • Self-consumption 8.4mA(12V),7.8mA(24V)
  • Temp. compensation -3mV/C/2V(25 C ref)
  • Equalize charging voltage Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V
  • Boost charging voltage Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V
  • Float charging voltage Gel /Sealed /Flooded: 13.8V, User-defined: 9~17V
  • Low voltage reconnect voltage Gel /Sealed /Flooded: 12.6V, User-defined: 9~17V
  • Low voltage disconnect voltage Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V
  • Working temp. -35~+55C Humidity ≤95% (NC)
  • Enclosure IP30 Dimension 138.6×69.3x37mm
  • Terminal 4mm2
  • Net weight 0.13kg
