JST-PH 4 pinninen liitäntäjohto
2,95 €
Saatavuus: Varastossa!
SKU
004046803540384035

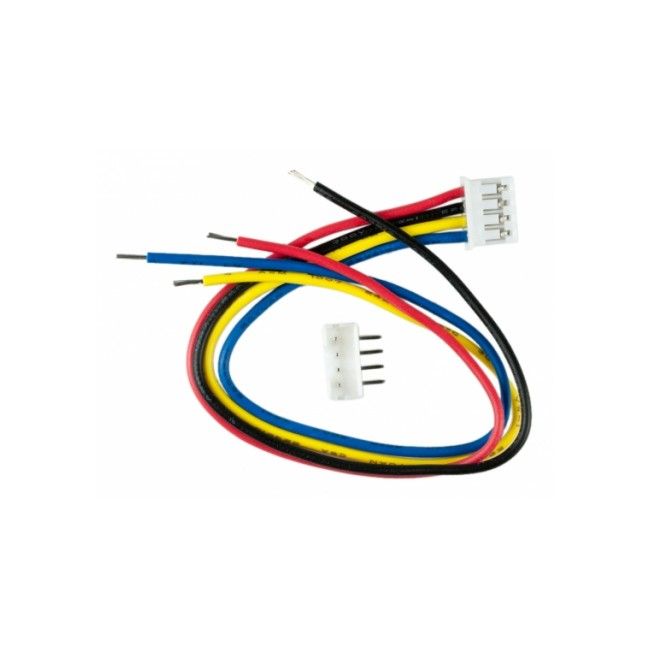

JST-tyyppinen 15 cm liitäntäjohto neljällä pinnillä. Mukana erillinen juotettava naarasliitin.
- 4 Pin JST PH Assembly & 4 Pin Right Angle Connector
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 100V AC, DC
- Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10m Ω max. After environmental testing/20m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #32 to #24
- Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
- The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
- The contact has a long wire strip holding length of 2.6 +/-0.4mm.
- Fully shrouded header
