JST-PH 3 pinninen liitäntäjohto

JST-PH 3 pinninen liitäntäjohto

JST-PH 3 pinninen liitäntäjohto

1,95 €
Saatavuus: Varastossa!
SKU
000803854343405

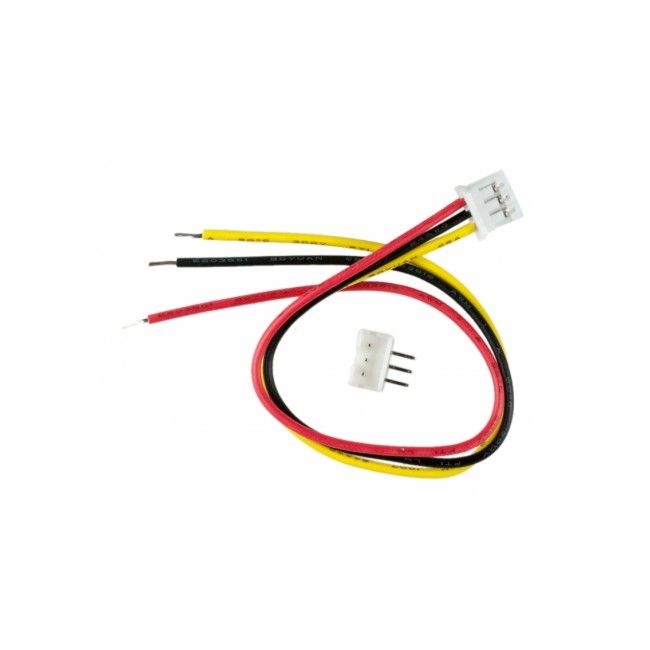

JST-tyyppinen 15 cm liitäntäjohto kolmella pinnillä. Mukana erillinen juotettava naarasliitin.

  • 3 Pin JST PH Assembly & 3 Pin Right Angle Connector
  • Current rating: 2A AC, DC (AWG #24)
  • Voltage rating: 100V AC, DC
  • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current)
  • Contact resistance: Initial value/10m Ω max. After environmental testing/20m Ω max.
  • Insulation resistance: 1,000M Ω min.
  • Withstanding voltage: 800V AC/minute
  • Applicable wire: AWG #32 to #24
  • Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
  • The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
  • The contact has a long wire strip holding length of 2.6 +/-0.4mm.
  • Fully shrouded header
