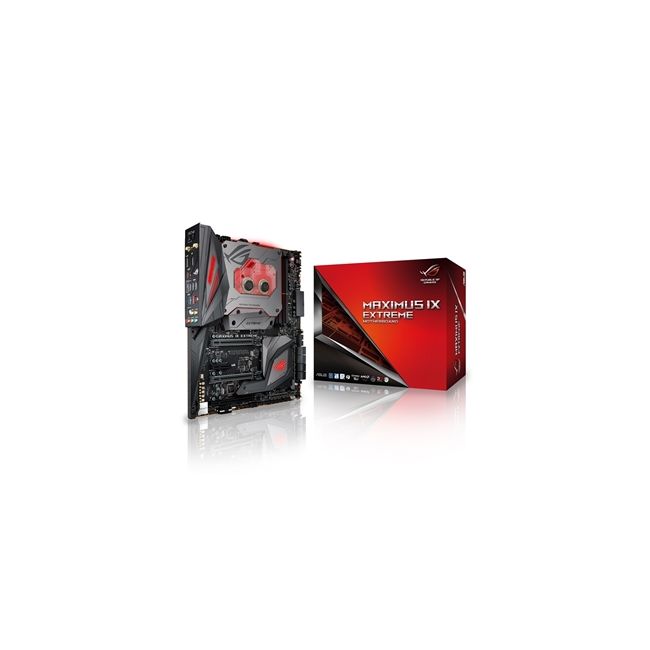

Asus ROG Maximus IX Extreme, ATX -emolevy

Prosessorituki:
Tukee Intel 7. ja 6. sukupolven Core i7/i5/i3, Pentium ja Celeron -prosessoreja
LGA1151

Piirisarja:
Intel Z270

Muistituki:
4 x DIMM DDR4, maks. 64GB
Dual Channel
DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400


Audio:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

Verkkokortti:
Intel® I219V

Wi-Fi 802.11 a/b/g/n/ac
Supports MU-MIMO

Laajennuspaikat:
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 3.0/2.0 x16
1 x PCIe 3.0 x4

Liitännät (sisäiset):
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
2 x Chassis Fan connector(s)
2 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x Slow Mode switch(es)
1 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x Clear CMOS button(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x USB BIOS Flashback button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x T_Sensor Connector
2 x W_Pump+ Header
1 x EXT_Fan header
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 front panel connector

Liitännät (ulkoiset):
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 ()Type-A + Type-C
6 x USB 3.0 (blue)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
5 x LED-illuminated audio jacks

Emolevyn tyyppi:
ATX
